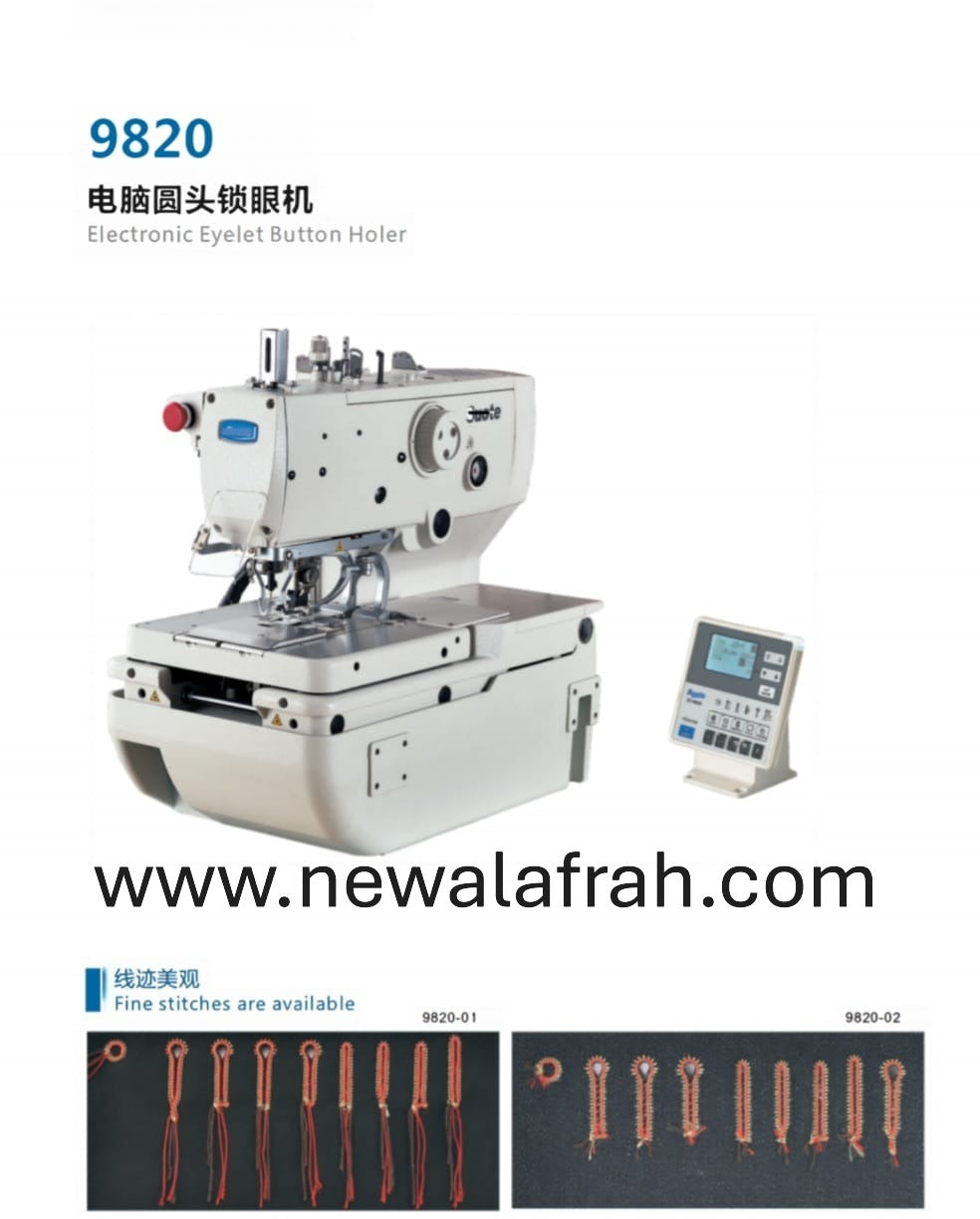

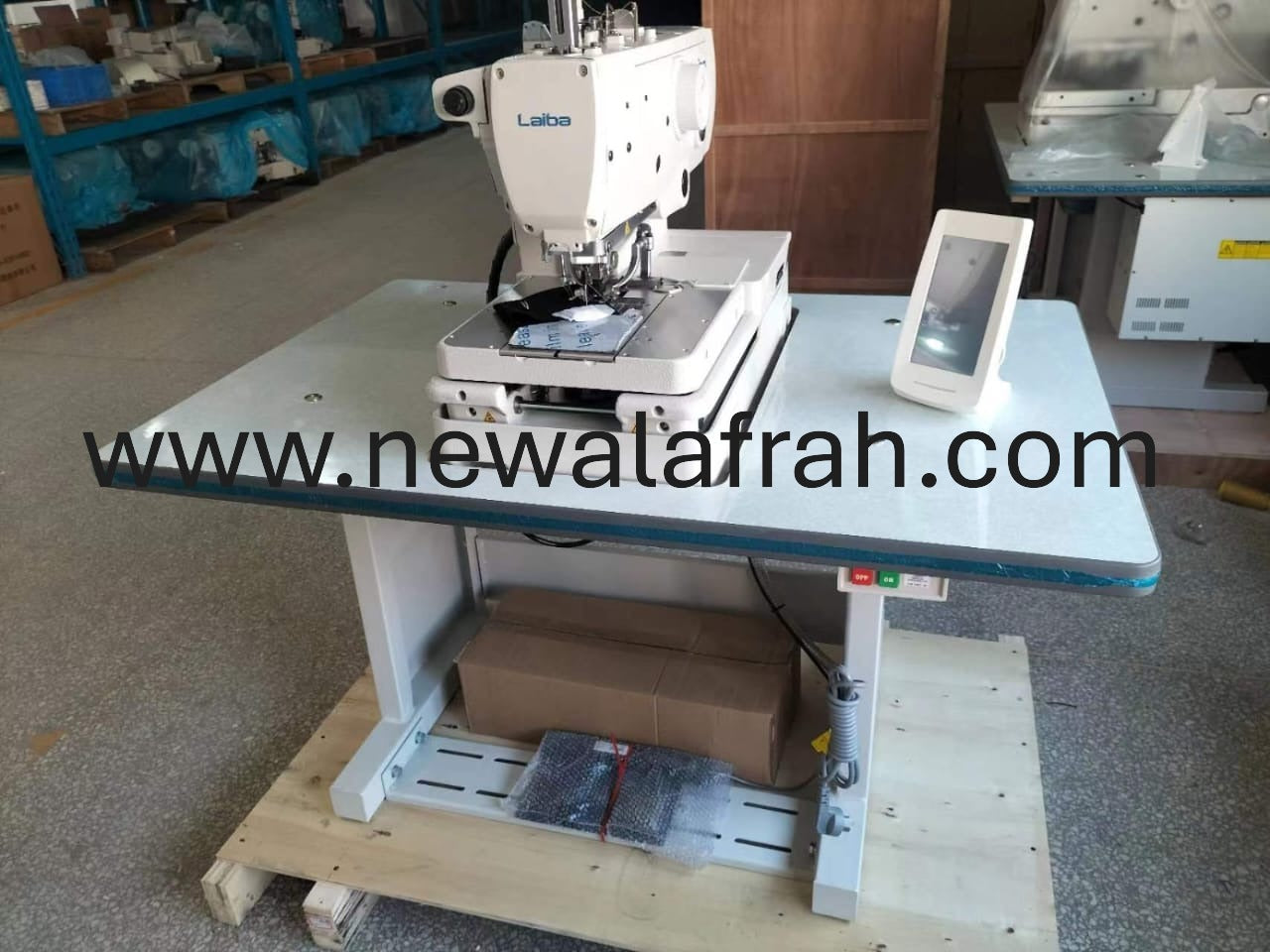

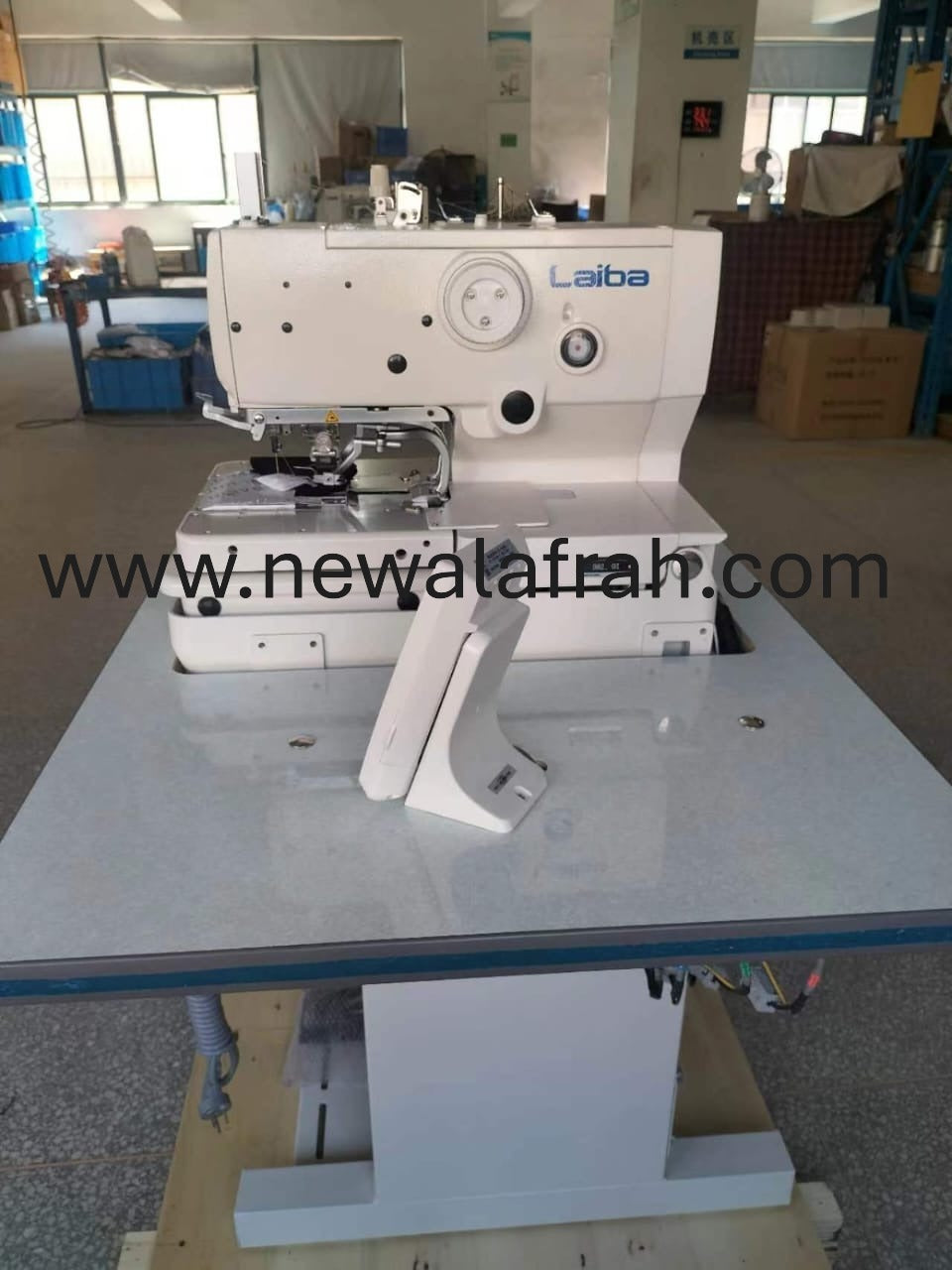

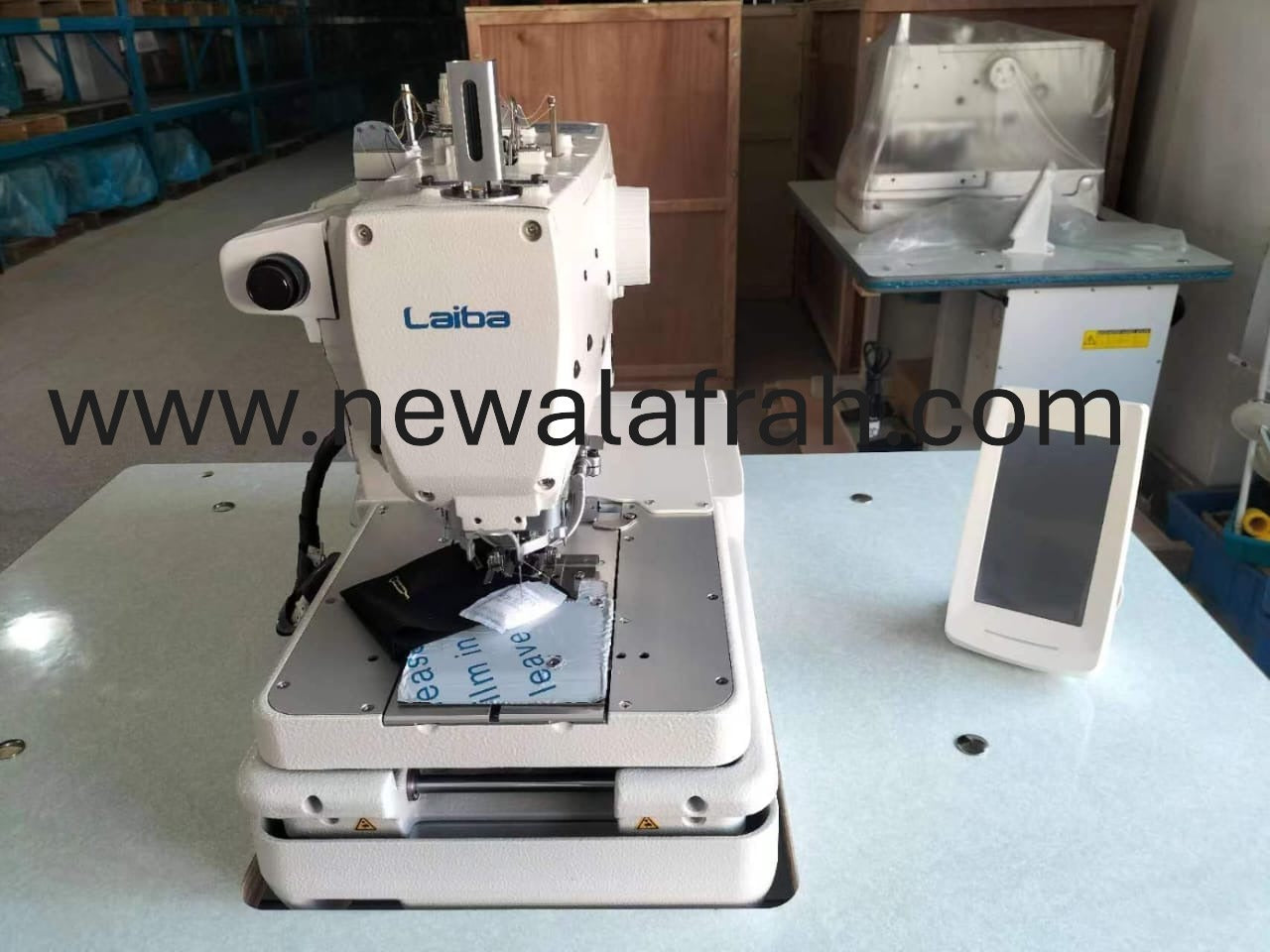

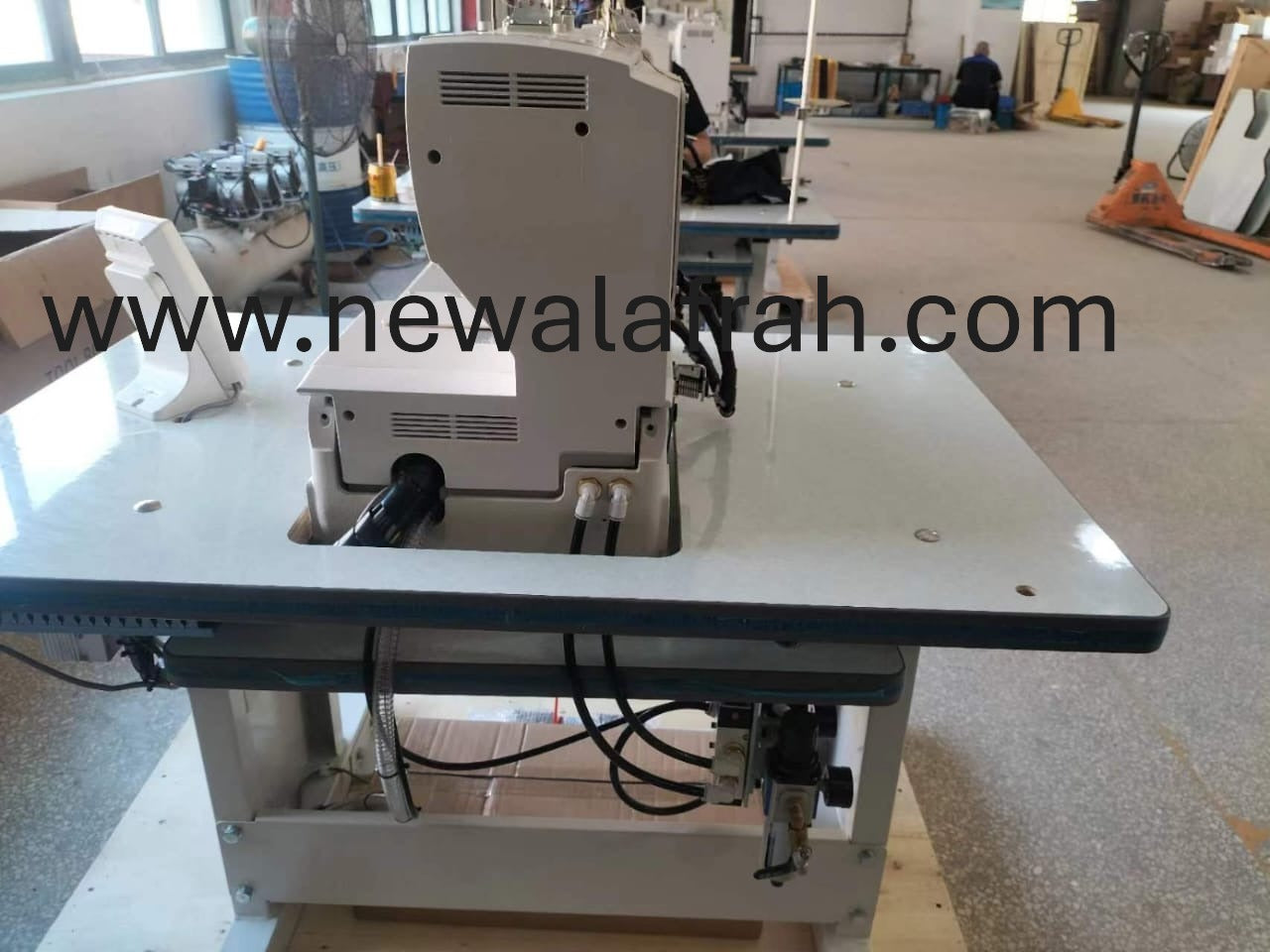

Industrial 9820 eyelet button hole holing buttonhole sewing machine.
Computer controlled, direct drive high speed eyelet button hole sewing machines.
1)The world's highest max. sewing speed 2,500 sti/min enhances productivity.
2)Fine stitches are available.
3)Skipped stitches are reduced.
| Model |
LB9820 |
| Max. speed |
2,500sti/min |
| Sewing length |
Eyelet buttonhole : 8-50 mm
Straight buttonhole : 5-50 mm |
| Length of work clamp (Standard) |
30 mm |
| Length of hammer (Standard) |
22 mm |
| Length of hammer (Accessory) |
30 mm |
| Stitch pitch |
0.5-2.0 mm |
| Zigzag width |
1.5 - 5.0 mm (Up to 4.0 mm in mechanical, up to 5.0 mm with zigzag width compensation) |
| Starting method |
Foot switch (Treadle type, Two-pedal type), Hand switch (Two-lever type) |
| Upper shaft motor |
AC servo motor 550W |
| Weight |
Machine head: Approx. 120 kg., Operation panel: Approx. 0.6 kg., Control box: 14.2-16.2 kg. (depending on the destination) |
| Power supply |
Single phase 100V/200V, 3-phase 200V/220V/380V/400V, 400VA |
