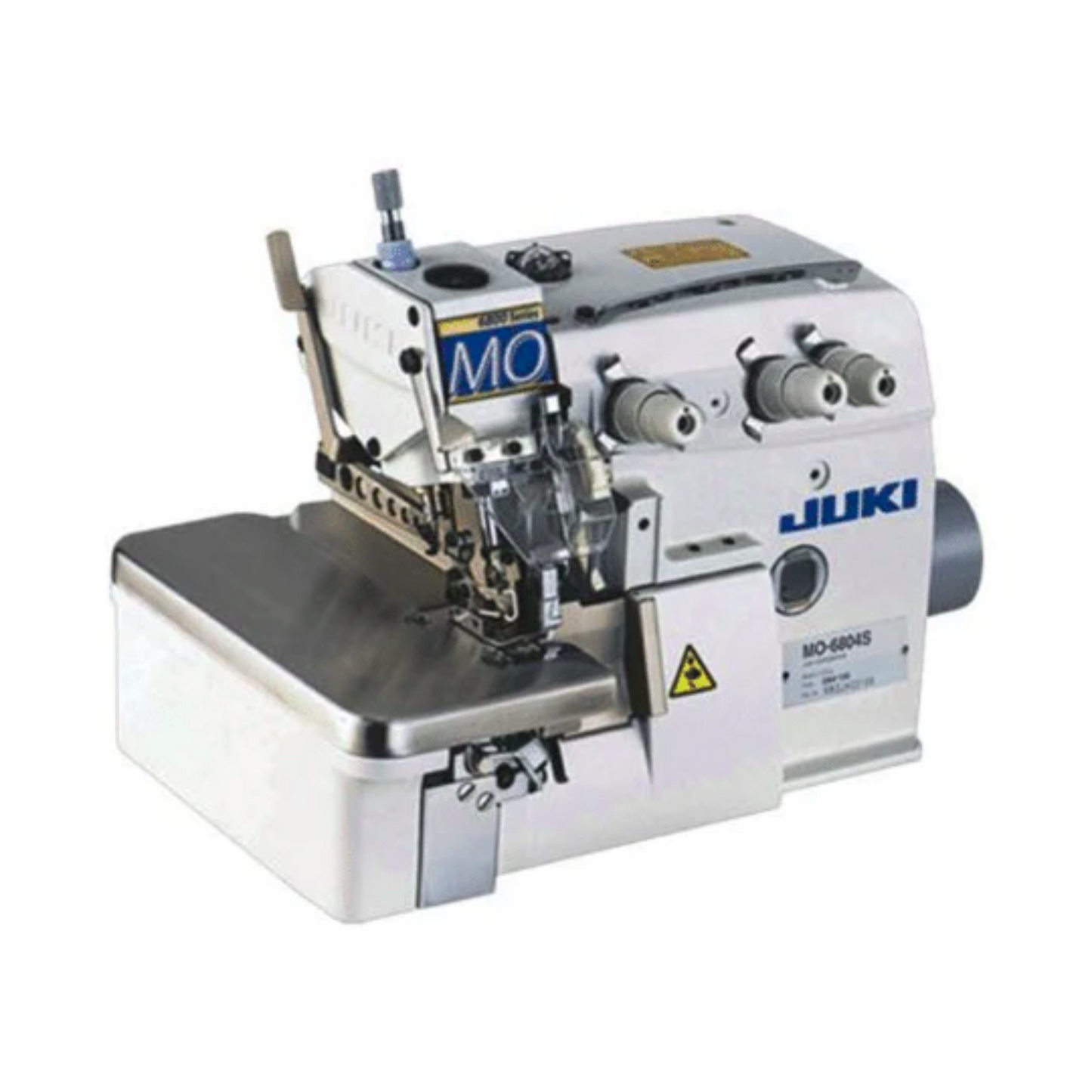

Juki MO 6804s overlocker

• Stitch Type:  1 Needle Overlock
• Stitch Style in USA:  504
• Max Sewing Speed:  7,000 Stitches per Minute
• Stitch Length:  0.6 ~ 3.8 (4.5) mm
• Overedging Width (mm):  1.5, 4.0
• Differential Feed Ratio:  For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)
• Needle Bar Stroke:  24.5mm(60H:27.0mm)
• Inclination Angle of the Needle:  20°
• Needle Bar Bushing:  Lower bushing method
• Needle:  DC×27 (excluding some subclass model)
• Max. Lift of the Presser Foot:  7mm (excluding some subclass model)
• Max. Presser Foot Pressure:  63.7N (6.5kgf)
• Stitch Adjusting Method:  By push-button
• Differential-Feed Adjusting Method:  By lever (with micro-adjustment)
• Weight of the Machine Head:  27kg
• Lubrication:  Automatic
• Lubricating Oil:  JUKI Machine Oil 18 (equivalent to ISO VG18)
• Needle Cooler:  Provided as standard
• Needle Thread Heat Remover:  Provided as standard
• Micro-Lifter:  Option

Discover precision sewing with the Juki MO-6804S Overlocker. Perfect for professional finishes, this advanced 4-thread overlocker ensures seamless stitching on a variety of fabrics.
