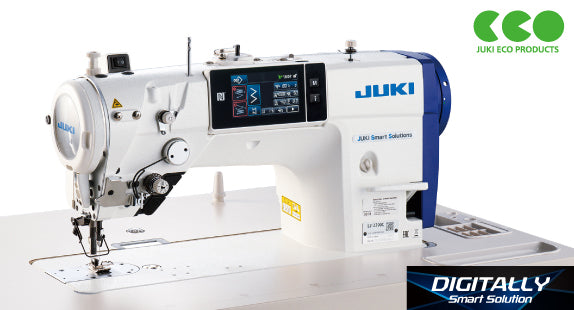

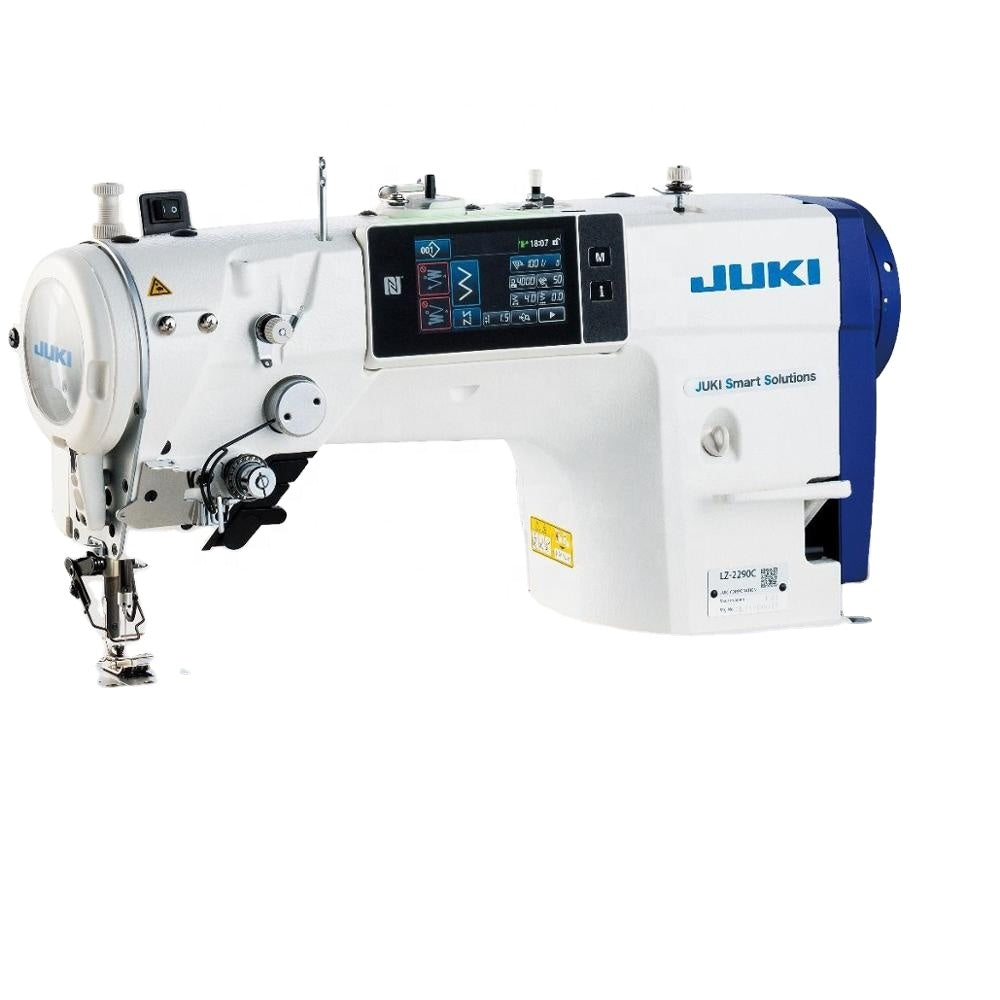

JUKI LZ2290C - DIGITAL PROGRAMMABLE ZIG ZAG SEWING MACHINE
JUKI LZ2290C - DIGITAL PROGRAMMABLE ZIG ZAG SEWING MACHINE
Regular price
Dhs. 17,599.00 AED
Regular price
Dhs. 18,500.00 AED
Sale price
Dhs. 17,599.00 AED
Unit price
/
per
Tax included.
Couldn't load pickup availability
1 needle digital Programmable Zig zag sewing machine (semi Dry Head : Without trimmer)
Complete set with table stand.
| Model Provided with automatic thread trimmer |
LZ-2290CF-7 | LZ-2290CS-7 |
|---|---|---|
| Model Not provided with thread trimmer |
— | LZ-2290CS |
| Specification | Full digital type | Digital type |
| Max. sewing speed*2 | 5‚000 sti/min*1 (4‚000 sti/min at the time of shipment*1) | |
| Max. zigzag width | Standard 8 mm (up to 10 mm by changing the gauge) | |
| Needle throwing mechanism | Motor control | |
| Feed mechanism (horizontal direction) | Motor control | |
| Feed mechanism (vertical direction) | Motor control | Mechanical type |
| Max. feed amount | 5.0mm (2.5 mm at the time of shipment) | |
| Thread take-up lever | Rotary thread take-up lever | |
| Thread tension control mechanism | Rotary active tension | Rotary type (spring-adjustment type) |
| Multi-layered portion detection device | Provided | Not provided |
| Presser system | Spring type (conventional type) | |
| Amount of lift of presser foot | Hand lifter: 5.5mm / Knee-lifter: 10mm / Auto-lifter: 10mm | |
| Auto-lifter | Selected on the machine head (motor control) | |
| Hook | DP hook (titanium-coated inner hook) | |
| Needle (at the time of shipment) | ORGAN DP x 5 (#10)‚ SCHMETZ 438 (Nm 75) | |
| Operation panel | Color touch panel (provided with the NFC function) | |
| Number of standard sewing patterns | 11 types‚ 20 patterns | |
| Memory capacity for custom patterns | 200 patterns | |
| Max. number of stitches | 500 stitches/pattern | |
| Continuous sewing pattern | Max. 20 patterns‚ 20 steps; 2‚000 stitches/step | |
| Main body input function | Provided (through the operation panel) | |
| Hand switch | Triple switch (custom-setting is possible) | |
| LED | Provided as standard (provided with the dimmer / toning functions) | |
| Bobbin winder | Built in the top part of machine head | |
| Machine head drive | Compact AC servomotor: 400 W (direct-drive type) | |
| Oiling | Semi dry (Frame: Lubricated with grease; Hook: Oil is supplied from the tank) | |
| Lubricating oil | JUKI New Defrix Oil No. 1 (equivalent to ISO VG7) | |
| Distance from machine arm to needle / Bed size | 300mm / 517mm×178mm | |
| Power consumption | 330W | 300W |
| Product weight | 49. 8kg | Provided with thread trimmer: 49.0kg Not provided with thread trimmer: 48.4kg |
For installation and more , +971553244995
