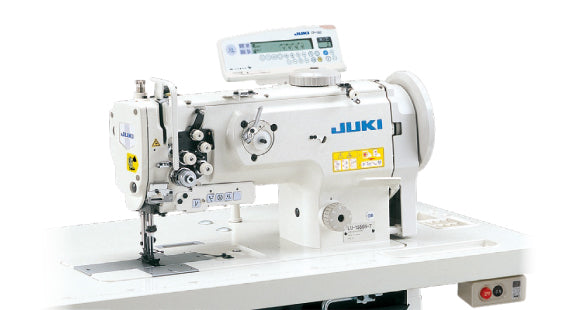

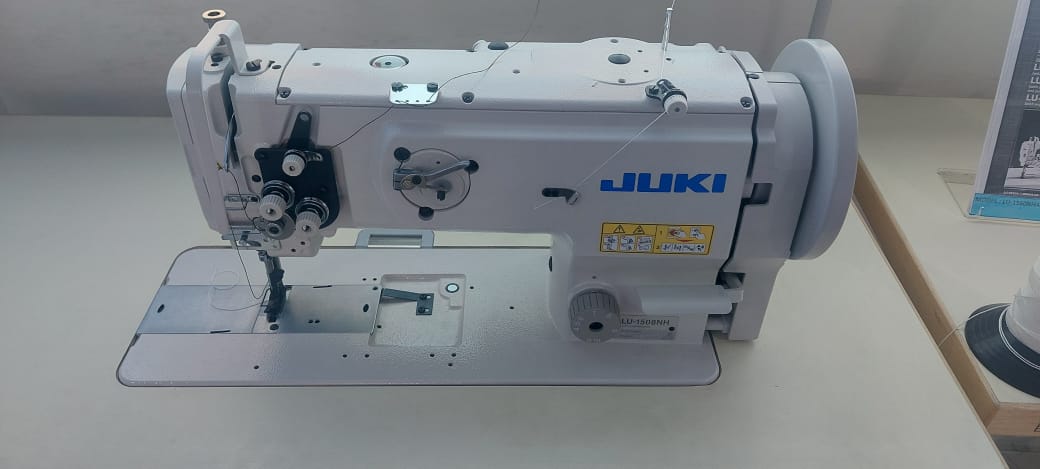

JUKI LU 1560NHA / 1560NKA - 2 NEEDLE UNISON FEED LOCKSTITCH MACHINE

2 needle Unison Feed lockstitch machine with Vertical - Axis Large hook - Complete set with Servo motor and table stand.

The Juki LU-1560N is a robust, high-performance industrial sewing machine designed for heavy-duty applications. With its double-needle, unison feed mechanism and vertical-axis double-capacity hook, it ensures consistent, high-quality stitching on thick and multi-layered materials, making it an ideal choice for professionals in upholstery, leatherwork, and heavy fabric industries.

•  High-Speed Efficiency: Operates at speeds up to 2,500 stitches per minute, enhancing productivity.
•  Unison Feed Mechanism: Ensures consistent material feeding, preventing slippage and stitch gathering.
•  Adjustable Presser Foot Lift: Offers a maximum lift of 16mm, accommodating various material thicknesses.
•  Automatic Lubrication: Reduces maintenance needs and extends machine lifespan.
•  Safety Clutch Mechanism: Protects the machine from hook damage, ensuring longevity.
•  Versatile Needle Gauge Options: Compatible with multiple needle gauges for diverse sewing requirements.



  Key Features & Benefits

  •  Double Needle Configuration: Allows for parallel stitching, ideal for decorative and structural seams.
  •  Vertical-Axis Double-Capacity Hook: Reduces bobbin changes, increasing efficiency.
  •  Rectangular Feed Motion: Provides consistent stitch quality on various materials.

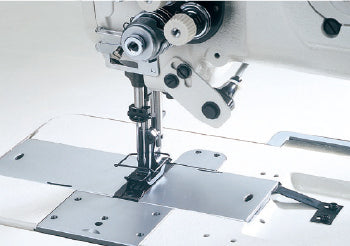

  •  Adjustable Alternating Presser Foot Movement: Ranges from 2.5mm to 6.5mm, adapting to material thickness.

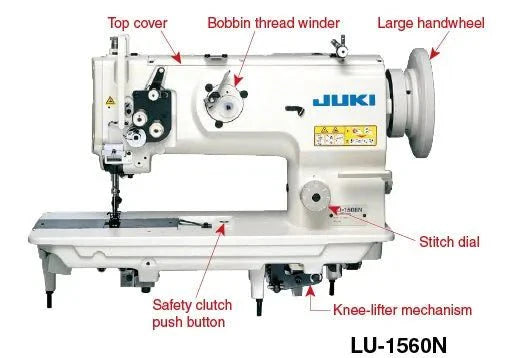

  •  Large Handwheel (φ160): Facilitates precise control and ease of operation.
  •  Built-in Bobbin Winder: Conveniently located on the front of the machine arm for easy access.

  Technical Specifications

  Model	Juki LU-1560N
  Stitch Type	Lockstitch
  Needle Configuration	Double Needle
  Needle Type	135×17 (Nm125–Nm180)
  Max Sewing Speed	2,500 stitches per minute
  Max Stitch Length	9mm (forward/backward)
  Presser Foot Lift	By hand: 9mm; By knee: 16mm
  Alternating Presser Foot Movement	2.5mm–6.5mm
  Needle Gauge	3/16", 1/4", 5/16", 3/8", 1/2"
  Hook	Vertical-Axis Double-Capacity Hook
  Lubrication	Automatic
  Bed Size	517mm × 178mm
  Weight of Machine Head	Approximately 45kg

  Ideal For

  • Automotive upholstery
  • Furniture manufacturing
  • Leather goods production
  • Canvas and heavy fabric sewing
  • Industrial textile applications

  Included Accessories

  • Servo motor
  • Fully assembled table and stand
  • Standard presser foot
  • Bobbin winder
  • Oil container
  • Instruction manual

    For installation and more , do contact +971553244995
